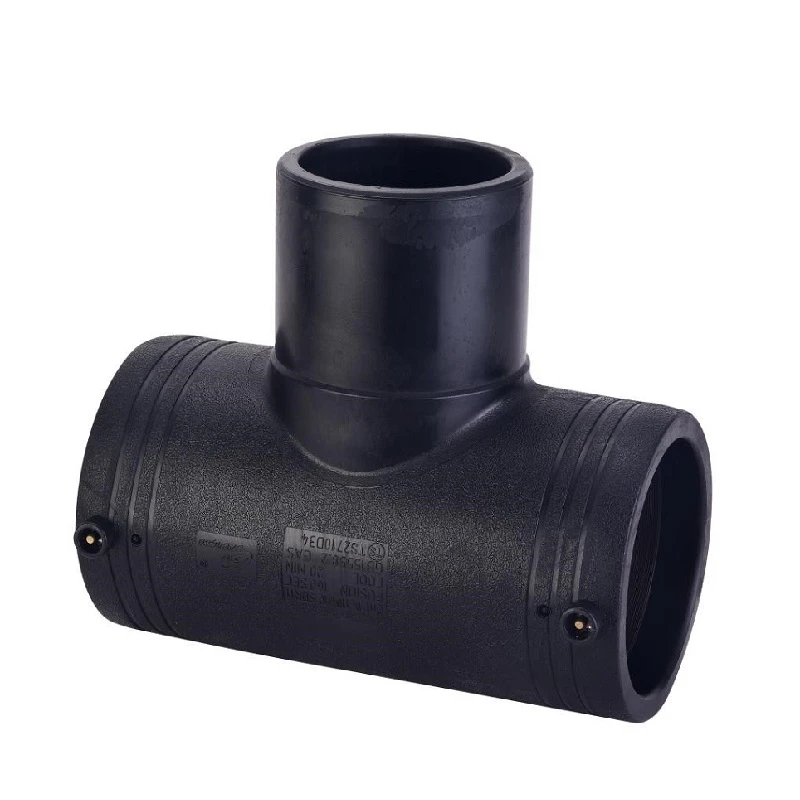

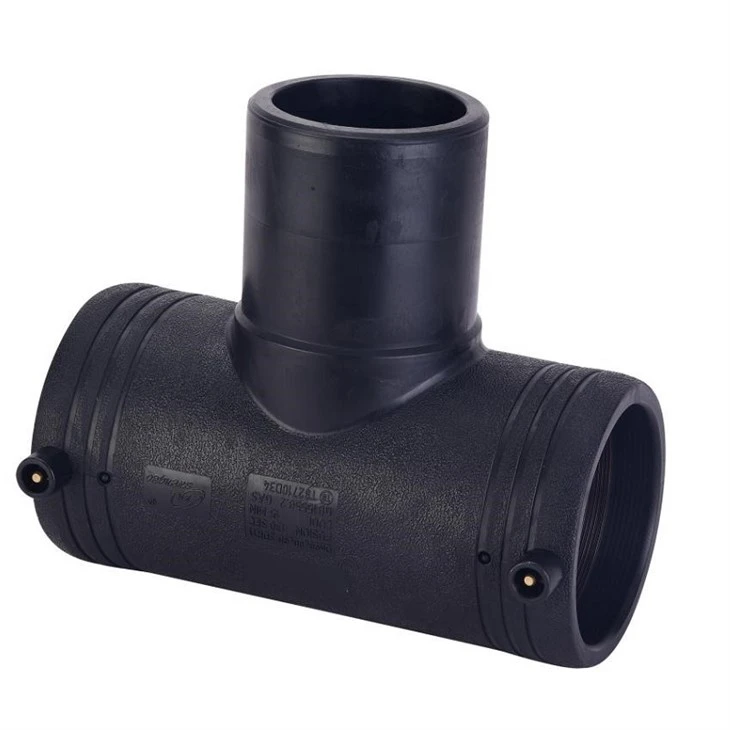

PE Electrofusion Equal Tee for HDPE Pipe Systems

The PE Electrofusion Equal Tee is a T-shaped fitting designed for polyethylene (PE) piping systems, allowing three pipes of the same diameter to be connected at a 90° angle for branch distribution and fluid diversion.

Manufactured from premium PE100 high-density polyethylene (HDPE), the fitting is produced through one-piece injection molding technology to ensure outstanding structural integrity and long-term reliability.

All three connection ends are embedded with high-quality copper resistance wires, while external terminal pins are designed for use with standard electrofusion welding machines. During installation, electrical current heats the embedded resistance wires, melting both the fitting and pipe surfaces simultaneously. After cooling, the materials fuse together into a permanent, fully integrated joint.

The PE Electrofusion Equal Tee complies with GB, ISO, and EN standards and is widely used in high-pressure gas, municipal water supply, chemical processing, and industrial piping systems.

Product Specifications

Item	Specification
Product Name	PE Electrofusion Equal Tee
Material	PE80 / PE100
Size Range	DN32 – DN355
SDR Rating	SDR11 / SDR17
Connection Method	Electrofusion Welding
Standard	GB / ISO / EN Standards
Oxidation Induction Time (210°C)	≥ 20 min
Melt Mass Flow Rate Change (MFR)	≤ 20%
Service Life	50+ Years

Features & Advantages

Reliable Leak-Free Connection

The electrofusion welding process creates a homogeneous molecular bond between the fitting and pipe, resulting in a joint strength that exceeds the pipe itself.

No risk of gasket aging or loosening
Permanent leak-free sealing
Excellent resistance to tension, settlement, and seismic movement

Excellent Corrosion Resistance & Long Service Life

Manufactured from high-performance HDPE material, the fitting offers:

Resistance to acids, alkalis, and soil corrosion
No rust or scaling
UV resistance and environmental stress crack resistance
Stable performance in high and low temperatures

Under normal operating conditions, the service life exceeds 50 years.

Hygienic & Environmentally Friendly

Non-toxic and odorless material suitable for potable water systems
Smooth inner surface reduces flow resistance
Prevents bacterial buildup
Fully recyclable material for environmentally responsible projects

Lower Overall Project Costs

Compared with traditional metal fittings, HDPE electrofusion fittings provide:

Lower transportation and installation costs due to lightweight construction
Minimal maintenance requirements
Long-term cost savings over the product lifecycle
Stable project quality with reduced rework rates

Fast & Efficient Installation

The PE Electrofusion Equal Tee is designed for simple and efficient installation.

Insert the pipe, connect the electrofusion machine, and start automatic welding
Single-person operation possible
Suitable for wet environments, trenches, underground chambers, and underwater applications
Short welding cycle, usually completed within minutes
No open flame or complicated surface preparation required

This makes the fitting especially suitable for emergency repairs, pipeline upgrades, and confined installation spaces.
