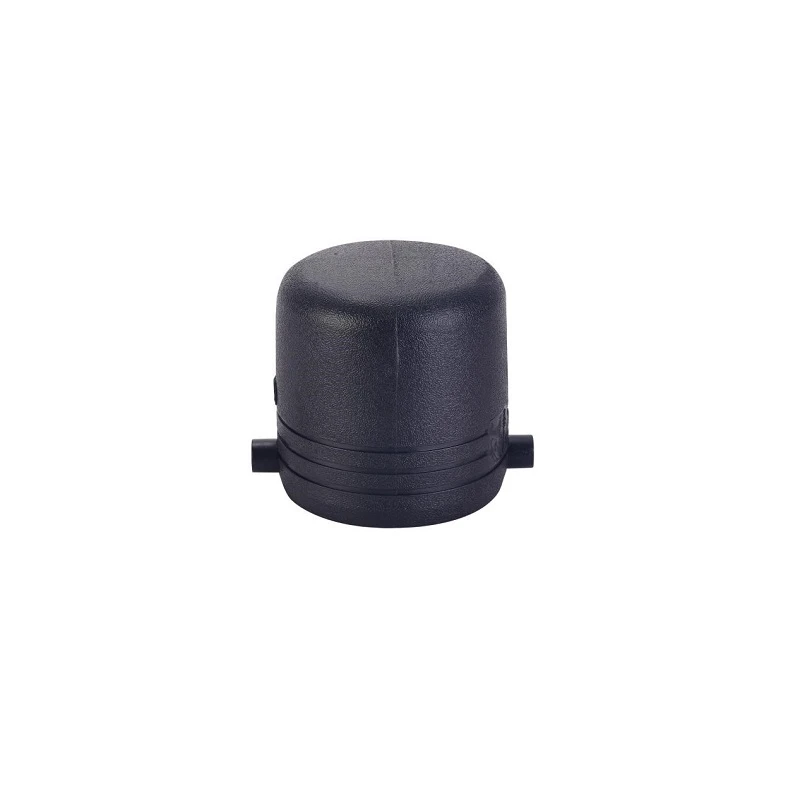

PE Electrofusion End Cap for HDPE Pipe Systems
The PE Electrofusion End Cap is designed for securely sealing the ends of polyethylene (PE) pipeline systems. Also known as an electrofusion end plug, this fitting is manufactured from premium PE100 virgin high-density polyethylene and produced through precision injection molding for consistent quality and long-term durability.
The inner wall is embedded with precision copper resistance wires, enabling reliable electrofusion welding with PE pipes. Once connected to an electrofusion welding machine, the fitting forms a homogeneous molecular bond with the pipe surface, creating a permanent, leak-free seal at the pipeline end.
Designed to meet national engineering standards, the PE Electrofusion End Cap is suitable for a wide range of PE pressure piping systems, including municipal water supply, gas distribution, irrigation, and industrial pipeline applications.
Product Specifications
|
Item |
Specification |
|
Product Name |
PE Electrofusion End Cap |
|
Material |
PE80 / PE100 |
|
Size Range |
DN32 – DN315 |
|
SDR Rating |
SDR11 / SDR17 |
|
Connection Method |
Electrofusion Welding |
|
Oxidation Induction Time (210°C) |
≥ 20 min |
|
Melt Mass Flow Rate Change (MFR) |
≤ 20% |
|
Service Life |
50+ Years |
Key Features
Designed for Reliable Pipe Sealing
Specially engineered for PE pipe end sealing applications, the fitting provides secure closure for temporary or permanent pipeline termination.
Complete Size Range
Available in multiple sizes to match standard PE pipe dimensions for water, gas, and industrial pipeline systems.
High-Quality PE100 Material
Manufactured from premium PE100 HDPE material with uniform wall thickness for:
- Excellent pressure resistance
- Strong impact performance
- Long-term structural stability
- Resistance to environmental stress cracking
Precision Electrofusion Structure
Embedded copper resistance wires ensure stable heating and strong welding performance during installation.
- Accurate fusion alignment
- Strong sealing performance
- Reliable weld quality
- Reduced risk of incomplete fusion
Product Advantages
Permanent Leak-Free Sealing
The PE Electrofusion End Cap creates a homogeneous fused joint without rubber seals or adhesives.
- No leakage risk
- Long-term sealing reliability
- Stronger than mechanical sealing methods
- Suitable for pressurized pipeline systems
Fast & Easy Installation
Installation is simple and efficient.
- Insert the fitting into the pipe
- Connect the electrofusion machine
- Complete welding within minutes
The process requires no open flame and can be performed by a single operator, even in confined installation areas.
Excellent Corrosion Resistance
HDPE material offers outstanding resistance to:
- Acids and alkalis
- Soil corrosion
- Rust and scaling
- UV exposure
Suitable for buried and outdoor applications with an expected service life exceeding 50 years.
Strong & Durable Connection
The fused joint provides excellent resistance to:
- Pipe settlement
- Axial tension
- External pressure
- Vibration and impact
Lower Installation & Maintenance Costs
The lightweight design reduces transportation and installation costs while requiring virtually no maintenance during long-term operation.
Safe & Environmentally Friendly
- Non-toxic and odorless
- Suitable for potable water systems
- Flame-free welding process
- Safe for gas and underground pipeline applications
Typical Applications
The PE Electrofusion End Cap is widely used in:
- Municipal water supply systems
- Natural gas distribution networks
- Agricultural irrigation pipelines
- Industrial fluid transportation
- Underground utility projects
- Temporary or permanent pipeline sealing
