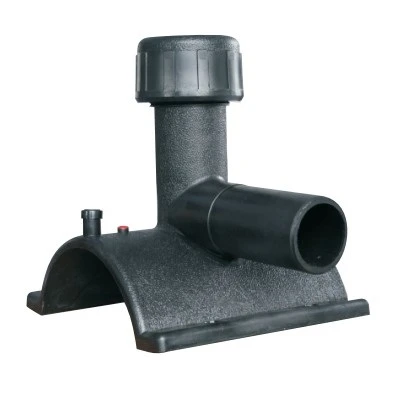

PE Electrofusion Saddle End Cap for HDPE Pipe Repair & Sealing

The PE Electrofusion Saddle End Cap is a specialized fitting designed for PE pipeline sealing, emergency repair, and branch closure applications. Manufactured from premium PE100 virgin high-density polyethylene through one-piece injection molding, the fitting features a curved saddle-shaped design that closely matches the outer surface of PE pipes for secure and reliable installation.

Precision copper resistance wires are embedded inside the saddle structure, enabling strong electrofusion bonding directly onto the external wall of the main pipeline. This allows damaged sections, unused outlets, or branch connections to be sealed without cutting the main pipe or excavating the surrounding area.

The PE Electrofusion Saddle End Cap is widely used in municipal water supply systems, gas distribution networks, irrigation pipelines, and industrial PE piping projects where fast, reliable, and non-invasive sealing solutions are required.

Product Specifications

Item	Specification
Product Name	PE Electrofusion Saddle End Cap
Material	PE100 HDPE
Connection Method	Electrofusion Welding
Structure Type	Saddle-Shaped External Sealing
Application	Pipe Repair & Branch Sealing
Suitable Media	Water, Gas, Irrigation, Industrial Fluids
Service Life	50+ Years
Installation Method	Non-Excavation / No Pipe Cutting

Key Features

Saddle-Shaped Design for Perfect Pipe Fit

The curved saddle structure is engineered to match the external contour of PE pipes, ensuring excellent surface contact and reliable fusion performance across different pipe diameters.

No Pipe Cutting Required

The fitting is designed for direct installation onto existing pipelines without cutting or removing the main pipe section, making it ideal for emergency repair and pipeline modification projects.

PE100 High-Density Polyethylene Construction

Manufactured from high-quality PE100 HDPE material for:

Excellent impact resistance
Superior pressure performance
Resistance to environmental stress cracking
Long-term durability in buried and outdoor environments

Integrated Electrofusion Welding System

Embedded precision copper resistance wires provide:

Uniform heat distribution
Stable electrofusion welding
Strong molecular fusion
Reliable leak-free sealing

Multiple Size Options Available

A full range of sizes is available to match various PE water and gas pipe systems.

Product Advantages

Fast & Non-Excavation Installation

The PE Electrofusion Saddle End Cap allows rapid on-site sealing without trench excavation or pipe removal.

No need to cut the main pipeline
Suitable for underground and confined installation environments
Ideal for emergency maintenance and retrofit projects
Reduces service interruption time

Permanent Leak-Free Sealing

Electrofusion technology creates a homogeneous molecular bond between the fitting and the pipe surface.

No rubber gaskets
No mechanical fasteners
No leakage risk
Long-term sealing reliability

Compared with traditional repair methods, the sealing performance is significantly improved.

Efficient Emergency Pipeline Repair

Short welding cycles and minimal preparation requirements help reduce downtime for water supply and gas distribution systems.

Fast installation process
No curing or additional maintenance required
Reduces operational losses during repairs

Durable & Corrosion Resistant

The fitting provides excellent resistance to:

Acids and alkalis
Soil corrosion
Rust and scaling
Pipe settlement and external stress

Expected service life exceeds 50 years under normal operating conditions.

Lower Project Costs

By eliminating excavation, pipe replacement, and complicated repair procedures, the PE Electrofusion Saddle End Cap helps reduce overall labor, equipment, and construction costs.

Safe & Environmentally Friendly
