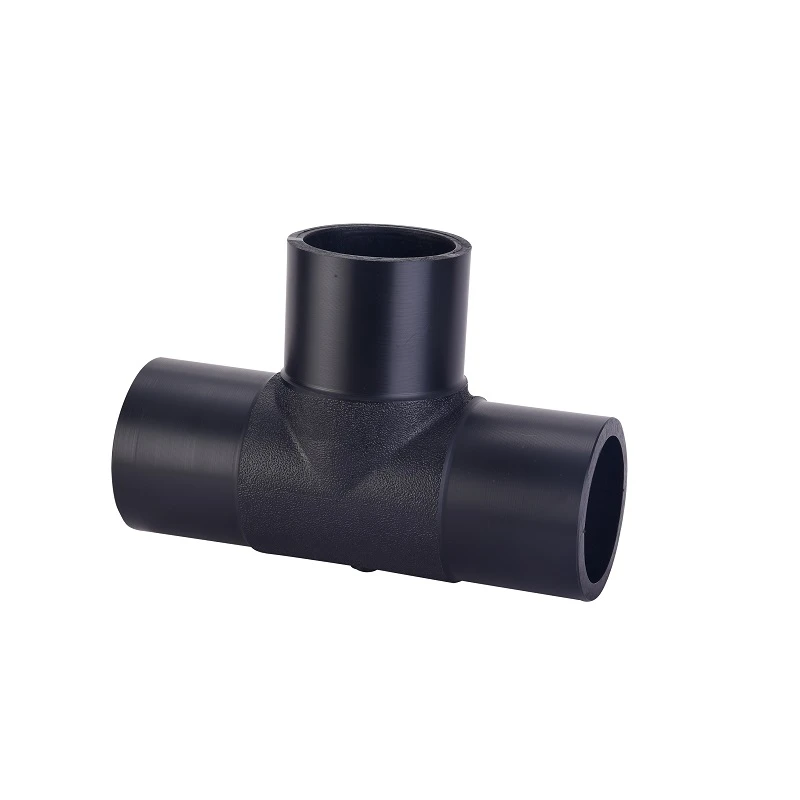

Large Diameter HDPE Buttfusion Fittings for High-Capacity Pipeline Projects
Large Diameter Buttfusion Fittings are used to connect HDPE pipes in water transmission, wastewater treatment, mining, industrial processing, and irrigation systems. The fittings are welded to the pipe through butt fusion, creating a continuous connection without mechanical joints or sealing components.
For large-diameter pipelines, connection reliability directly affects the overall performance of the network. A properly fused joint provides the same structural integrity as the pipe itself, helping reduce leakage risks and maintenance requirements over the lifetime of the project.
Product Features
Suitable for Large-Diameter HDPE Pipelines
Designed for medium- and large-scale pipeline networks, these fittings are commonly used in transmission lines where high flow capacity and long service life are required.
01
Fusion-Welded Connection
The butt fusion process joins the fitting and pipe into a single continuous system. Unlike flanged or threaded connections, there are no additional sealing materials that may deteriorate over time.
02
Corrosion-Free Material
Manufactured from PE100 material, the fittings are not affected by rust, scale formation, or soil corrosion. This makes them suitable for buried pipelines and aggressive operating environments.
03
Reduced Maintenance Requirements
Because the joint becomes part of the pipeline, routine maintenance associated with mechanical connections can be significantly reduced.
04
Long-Term Service Performance
HDPE piping systems are widely selected for infrastructure projects due to their durability and expected service life of more than 50 years under normal operating conditions.
05
Available Types
Our large diameter HDPE buttfusion fittings include:
- 90 Degree Elbows
- 45 Degree Elbows
- Equal Tees
- Reducing Tees
- Concentric Reducers
- Eccentric Reducers
- End Caps
- Stub Ends
- Flange Adaptors
- Fabricated Crosses
- Customized Fabricated Fittings
Custom dimensions and special configurations can be manufactured according to project drawings.
Typical Applications
Municipal Water Supply
Large diameter fittings are widely used in raw water transmission lines, urban water distribution networks, and regional water transfer projects where leak-free operation is a key requirement.
Wastewater and Sewage Infrastructure
HDPE fittings are commonly installed in sewage collection systems and wastewater treatment plants because they are resistant to corrosion and chemical attack.
Mining Operations
Mining projects often require large-diameter pipelines for slurry, tailings, and process water transport. HDPE systems are valued for their abrasion resistance and low maintenance requirements.
Industrial Pipeline Systems
Used in power plants, chemical facilities, desalination plants, and industrial water treatment projects where pipeline reliability is critical.
Agricultural Irrigation Networks
Large-scale irrigation systems benefit from HDPE fittings due to their lightweight construction, easy handling, and long operating life.
Technical Specifications
|
Item |
Specification |
|
Material |
PE100 |
|
Connection Method |
Butt Fusion |
|
Size Range |
DN630–DN1600 |
|
Pressure Rating |
PN6–PN25 |
|
Standards |
ISO 4427, EN 12201 |
|
Color |
Black |
|
Service Life |
50+ Years |
Custom sizes and pressure classes are available upon request.
Manufacturing Capability
We manufacture large diameter fabricated fittings using PE100 material and specialized welding equipment. Each fitting undergoes dimensional inspection and welding quality checks before delivery.
Our production capabilities include:
- Large diameter fabrication up to DN1600
- Custom-made fittings based on drawings
- Project-specific production
- OEM manufacturing
- Export packaging and logistics support
Technical documents and material certificates can be provided according to project requirements.
Why Large Diameter Buttfusion Fittings?
For large pipeline systems, minimizing leakage points is one of the primary considerations during design and construction. Butt fusion technology eliminates the need for mechanical couplings and creates a continuous pipeline structure.
This connection method is widely used in municipal infrastructure, industrial facilities, mining operations, and water transmission projects where long-term reliability is required.
Request a Quote
If you are sourcing Large Diameter Buttfusion Fittings for a water, mining, industrial, or infrastructure project, send us your pipe size, pressure requirements, or technical drawings.
Our team can provide product recommendations, dimensional information, and quotations based on your project specifications.
