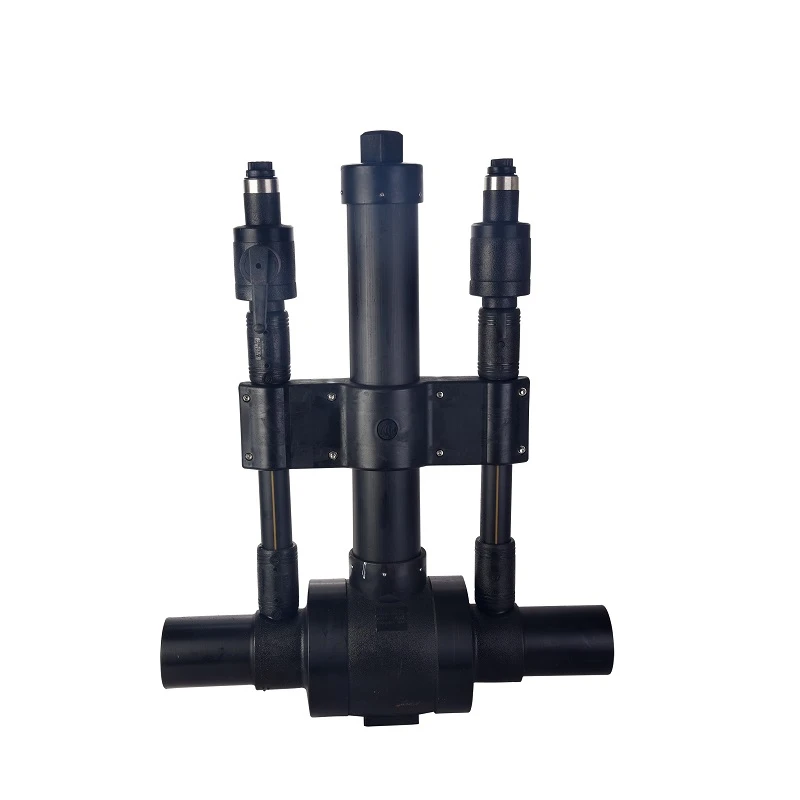

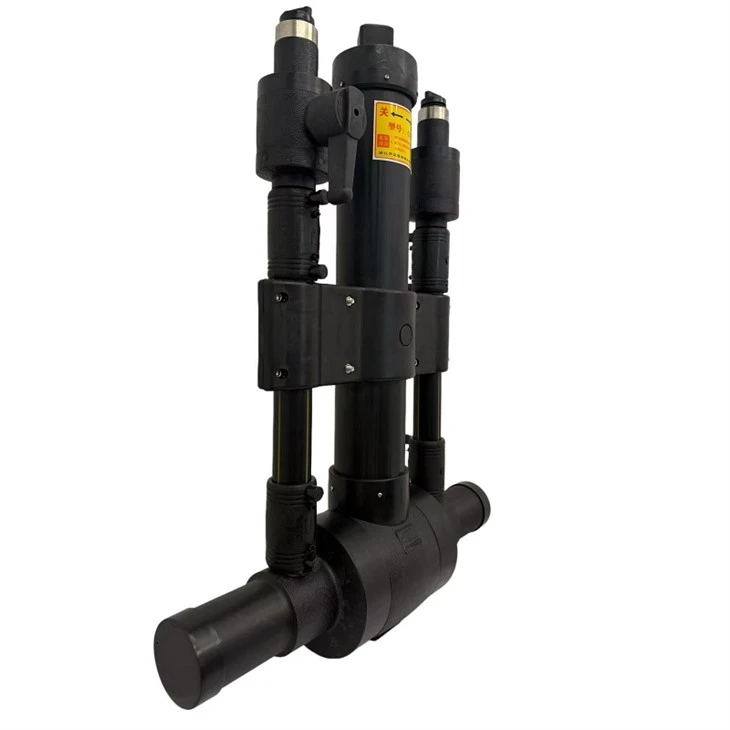

Full Bore PE Ball Valves for Unrestricted Flow in HDPE Pipeline Systems

Full Bore PE Ball Valves are designed for polyethylene pipeline systems where maintaining maximum flow capacity is important. The internal bore of the valve matches the pipe diameter, allowing fluid or gas to pass through without significant restriction.

These valves are commonly used in water distribution networks, gas transmission systems, irrigation projects, mining operations, and industrial utility pipelines where pressure loss and flow efficiency are key design considerations.

Product Features

Full Bore Design

The valve provides a flow passage equivalent to the internal diameter of the connected pipe. This helps maintain flow rates and reduces pressure drop across the valve.

Suitable for Pigging and Cleaning Operations

The unobstructed flow path allows cleaning devices and inspection tools to pass through the pipeline more easily compared to reduced-port valve designs.

PE100 Valve Body

Manufactured from PE100 material, the valve offers the same corrosion resistance and service life characteristics as HDPE pipeline systems.

Compatible with HDPE Pipe Networks

Available with butt fusion or electrofusion connections for direct installation into PE80 and PE100 pipelines.

Quarter-Turn Operation

The valve can be fully opened or closed with a 90-degree rotation, providing a simple method for isolating pipeline sections during maintenance or operational procedures.

Available Types

We supply a range of Full Bore PE Ball Valves, including:

Full Bore PE Gas Ball Valves
Full Bore PE Water Ball Valves
Electrofusion Full Bore Ball Valves
Buttfusion Full Bore Ball Valves
Underground PE Ball Valves
Long Handle PE Ball Valves
Customized Full Bore Valve Assemblies

Valve configurations can be selected according to project requirements and operating conditions.

Typical Applications

Water Transmission Pipelines

Used in municipal and regional water supply networks where maintaining flow efficiency is important over long pipeline distances.

Natural Gas Distribution Systems

Installed in gas transmission and distribution networks requiring reliable shut-off capability while minimizing flow restriction.

Irrigation Infrastructure

Suitable for large-scale irrigation systems where unrestricted water flow supports efficient operation.

Mining and Slurry Transport

Applied in mining projects where high flow rates and reduced pressure losses contribute to overall system performance.

Industrial Utility Networks

Used in cooling water systems, process water pipelines, and utility infrastructure that utilize HDPE piping.

Technical Specifications

Item	Specification
Valve Body Material	PE100
Connection Type	Butt Fusion / Electrofusion
Valve Design	Full Bore
Size Range	DN20–DN400
Pressure Rating	PN10–PN16
Operating Medium	Water, Gas, Industrial Fluids
Applicable Standards	ISO 4427, ISO 4437, EN 12201, EN 1555

Custom dimensions and operating configurations are available upon request.

Production Capability

Full Bore PE Ball Valves are manufactured using PE100 material and precision-machined valve components. Each valve undergoes dimensional inspection, operational testing, and sealing verification before shipment.
